Ground Screw Steel Mounting Structure

Ground Screw Steel Mounting Structure is using spiral ground screw piles as the foundation, strong structure, easy to install, and competitive prices. It is made of magnesium -plated and aluminum zinc material. It has strong anti -corrosion capacity and is 5 times that of hot -dip galvanized steel. The ground mount structures are widely used in large ground commercial installation. The pulling of ground screw piles is stronger traditional pile, and anti -corrosion capabilities is better, so they are durable to use.

TECHNICAL INFORMATION

Install site ：Open Field

Wind Load: Up to 60m/s

Snow load: <1.4KN/m2

Module Type: Framed or Frame-less

Module Arrangement: Portrait or Landscape

Tilt Angle:0-65 deg. Design on request

Foundation: Pile Driven

Main Material ：Zn-Al-Coated Steel

Anti-corrosive: Zn-Al-Coated Steel

Standard ：En 1090, AS/NZS 1170,DIN 1055, IBC 2006 and other international Standard

Warranty：12 years warranty and twenty- year service life

The Over View of the Steel Ground Mounting Structure

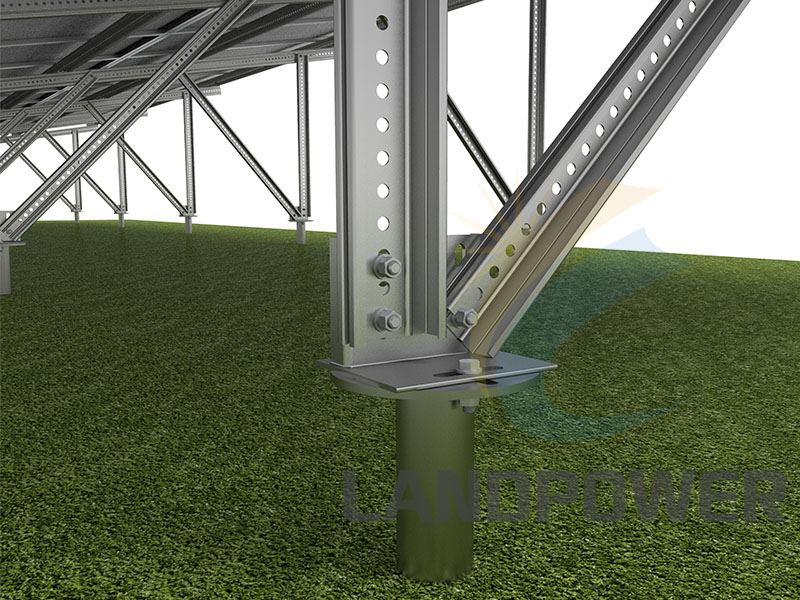

Ground Screw Foundation

The pulling out capacity of the ground screw anchor is better than traditional pile due to the continuous helix design on the ground pile, which made greater friction underground to ensure more strength on the mounting structure.

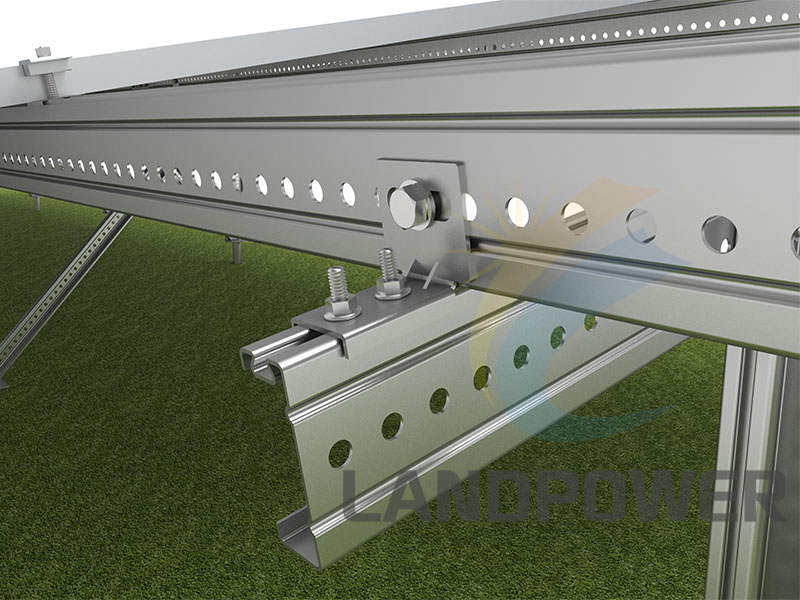

The Details of Steel Ground Mounting System

We can adjust our mounting design according to the specific project situation so that our brackets meet your specific projects. If there is a project, please contact us for your specific design
